Brand Name : TAKUMI
Model Number : R10P7
MOQ : 1
Payment Terms : T/T
Delivery Time : 5-15 day
Packaging Details : 1) 1pc in a plastic box, 10pcs in a middle box. 2) 4pcs in a blister packing. 3) Pack as required.
Thread Length : M18*1.5
Hex Size : 22.2mm
Seat Type : FLAT
GAP : 0.3MM
Electrode Tpye : Special Design
Replace : P7.1V5 351000 P7.1V6 382195
Resistor Or Not : Resistor
Heat Range : 77
Reference Codes : R10P7
Gas type : Natural gas,coal miner gas,landfill gas,biogas
R10P7 engine number : Jenbacher GS320 series
R10P3 engine number : Jenbacher GS420 series
R9B12-77 engine number : Jenbacher GS620 series
R10P7 match with : 351000,382195
R10P3 match with : 462203,347257,401824
R9B12-77 match with : 436782
SparkPlugs For Cogeneration Plants 351000 382195
Model No. | R10P7 | Thread | M18*1.5 |
Seat Type | Flat | Reach | 20.6mm |
Heat Range | 77 | Hex | 22.2mm |
Electrode Type | Special Design | Gap | 0.3mm |
Resistor or Not | Resisotr | Notes: Replace P7.1V5 351000/IV6 382195 |
Company Information
TAKUMI Group Spark Plug Factory is the No.1 OE spark plug manufacturer in China, and covers approximately 60% of Chinese OE market. We have the most reliable welding technologies of platinum and iridium and are asked to manufacture spark plugs as OE replacement for some famous brands
workshop photo
Advantage
1.Reliable Performance
· Special Ceramic Insulator
· Anti-rust Nickel-plated Shell Copper Core Electrode Helps Transfer Heat Withstands Temperature Pressure and Vibration Fits most OEM models
2.Diversified Products
Spark Plugs with Different Electrode Shapes
Spark Plugs with Noble Metal Electrodes
Spark Plugs with Different applications
3.Advanced Technology CAD&LAN Advanced Test Equipments-Preignition Indior etc.
Advanced Processes- Laser Welding etc.Perfect Performance of New Products
![]() |

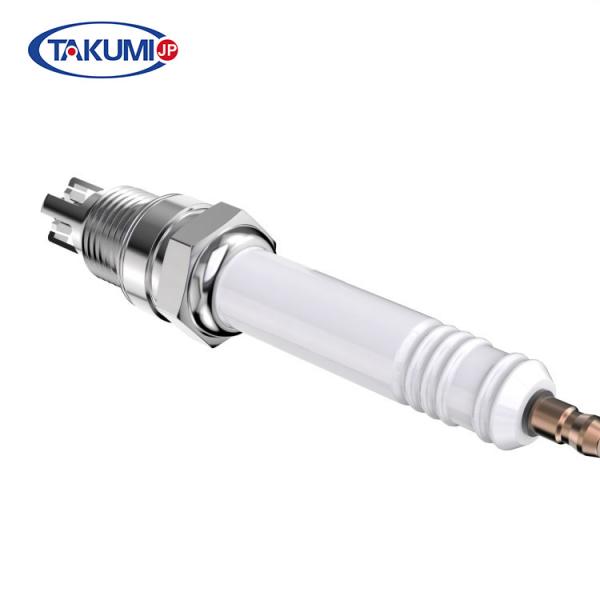

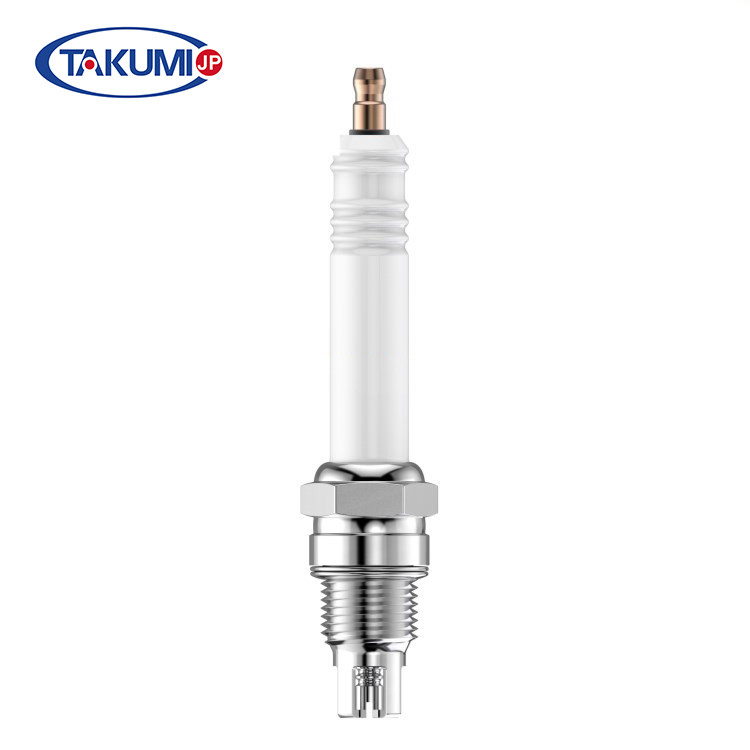

R10p3 Industrial Spark Plug Images |
