Home > Generator Spark Plug >

Waukesha Generator Spark Plug For 69919D Cummins 4098162 Guascor 7664292

Product Categories
TAKUMI JAPAN AUTO PARTS CO.,LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

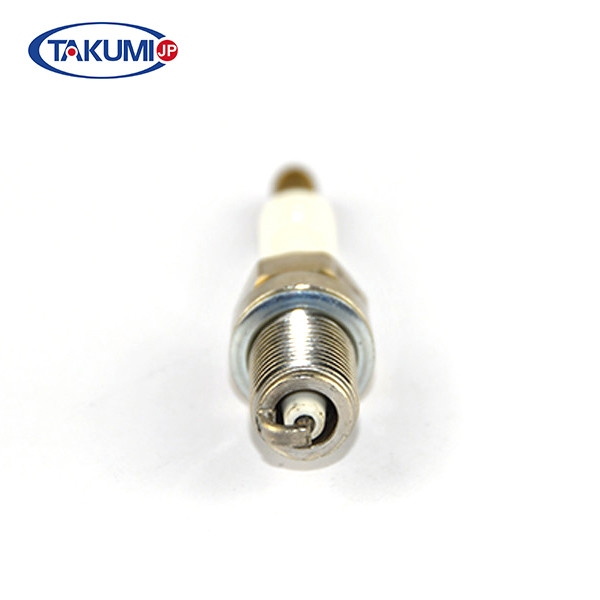

Waukesha Generator Spark Plug For 69919D Cummins 4098162 Guascor 7664292

  • 1
  • 2

Brand Name : TAKUMI

Model Number : R5B12-77

Certifiion : TS16949 ISO9001

Place of Origin : Hunan,China

MOQ : 1

Price : By discussed

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 30 working days

Packaging Details : Tin, Plastic box, white box, Carton,As cunstomer request

Thread : M18x1.5

Reach : 20.6mm (13/16”)

Hex : 7/8”(22.2mm)

Gap : 0.3mm

Heat range : 77

Electrode : "J" Gap industrial electrode

Resistor : Yes

Model : R6GC1-77

Fit to : Denso: GI3-1, GI3-5 Champion: FB77WPCC :243-4291

Contact Now

Industrial Spark Plugs for Waukesha 69919D Cummins 4098162 Guascor 7664292

Spark plug data
Type R5B12-77
Thread M18x1.5
Hex 22.2 mm
Seat Type Flat
Gap 0.3 mm
Heat Range 77
Resisitor or Non-Resistor Resistor
Electrode Type J
Cross-References
BOSCH: 7306 (MR3DPP330), 7301
CHAMPION: RB77WPCC /KB77WPCC
WAUKESHA: 60999Z/69919D
CUMMINS: 4090121/4098162/4010981/4302738
GUASCOR: 76.64.291/76.64.293/76.64.292
289383



Equal life time to the original.
Competively lower price than the original

Features:

Guascor gas engines cover a power range from 242 to 1,308 kWe and provide excellent installation solutions for co- and tri-generation configurations. These configurations represent one of the best ways to reduce your energy costs and your carbon footprint.
Fuel flexibility: Can be designed to handle different gas fuels
Capable of working with variable loads
Robust design to operate under severe conditions
high operational availability
Easy maintenance



Apply for:

  • CUMMINS: Q19G, QSV81-V16, QSV91-V18
  • GUASCOR: FG180, FGLD180, FG240, FGLD240, FGLD360, FGLD480
  • J612, J616, J620 (1995/9 - BMEP = 16 bar or less)
  • 4000 Series
  • SUPERIOR: 1706G2, 1712G1
  • WARTSILA: W25SG, W28SG, W34SG, W20V, 34SG
  • WAUKESHA:
  • AT Series:
  • 8L-AT25GL / AT27GL (13/16" Reach Heads), 12V-AT25GL / AT27GL (13/16" Reach Heads)
  • VGF Series Inline 6: F18G, F18GL/GLD
  • VGF Series Inline 8: H24G, H24GL/GLD
  • VGF Series V-12: L36GL/GLD
  • VGF Series V-16: P48GL/GLD
  • VHP Series Inline 6: 2895GL (13/16" Reach Heads), 3521GL (13/16" Reach Heads)
  • VHP Series V-12: L5108GL (13/16" Reach Heads), L5790GL (13/16" Reach Heads), L7042GL (13/16" Reach Heads)
  • VHP Series V-16: P5115GL, P9390GL (13/16" Reach Heads)
  • CHP Gas Engine
  • Cogeneration Plants
  • Power Plants
  • Power House
  • Cogeneration generator

Details:

Waukesha Generator Spark Plug For 69919D Cummins 4098162 Guascor 7664292

ALTERNATOR
Voltage V 400 rated
Speed rpm 1500
Frequency Hz 50
Bearings 2
Voltage accuracy % ± 1.5
Isolation class H
Heating class F
Excitation Electronically controlled
Protection level IP23
Accuracy of voltage % ± 1.5
Between phases: 2
Between phases and neutral: s 1
Service type Continuous 24/24h
Ambient temperature ºC < 40
Altitude m < 1000

Reference applications
ARGILORE (Hondarribia, Spain)
Fuel Engine type Electrical output Thermal output Commissioning
Natural gas 3 x FGLD 360 1.6 MW 2.6 MW 2009 / 2010
Installation of a cogeneration plant for greenhouse and plant nursery.CO 2 Output ~600kg/h
WWTP ARROYO CULEBRO (Madrid, Spain)
Fuel Engine type Electrical output Thermal output Commissioning
Sewage gas 2 x FGLD 480 4.5 MW 2005 / 2007
3 x SFGLD 560
Water treatment plant
AFRICAN GLASS (Lagos, Nigeria)
Fuel Engine type Electrical output Thermal output Commissioning
Natural gas 2 x SFGLD 560 1890 KW _ 2010
Natural gas 1x SFGLD 360 610 KW
Glass manufacturing & recycling industry.
Exhaust energy for Glass processing.
Hot water for heating.



Why choose us?

1. Over 50 years experiences in auto parts
2. Products under ISO9001, TS 16949 quality system certifiion
3. Good raw material and advanced technology to ensure high quality
4. Diversified products with reliable performance and competitive factory price
5. Strict on quality and 100% inspection
6. Professional technical support and service.
7. OEM accepted, tiral order accepted.

Shipping details:

1. We can ship your item by DHL,FEDEX,UPS,EMS(Express Mail Service),or other shipping ways as your request.
2. We take great care in packaging ensure that every item will shipment to you e.


We are the No.1 spark plug manufacturer in China since 1961, with ISO 9000,TS 16949 Quality System Certifiion. The high quality of our products is the same as famous brands all over the world, while our price is more competitive. Welcome to visit our factory.
